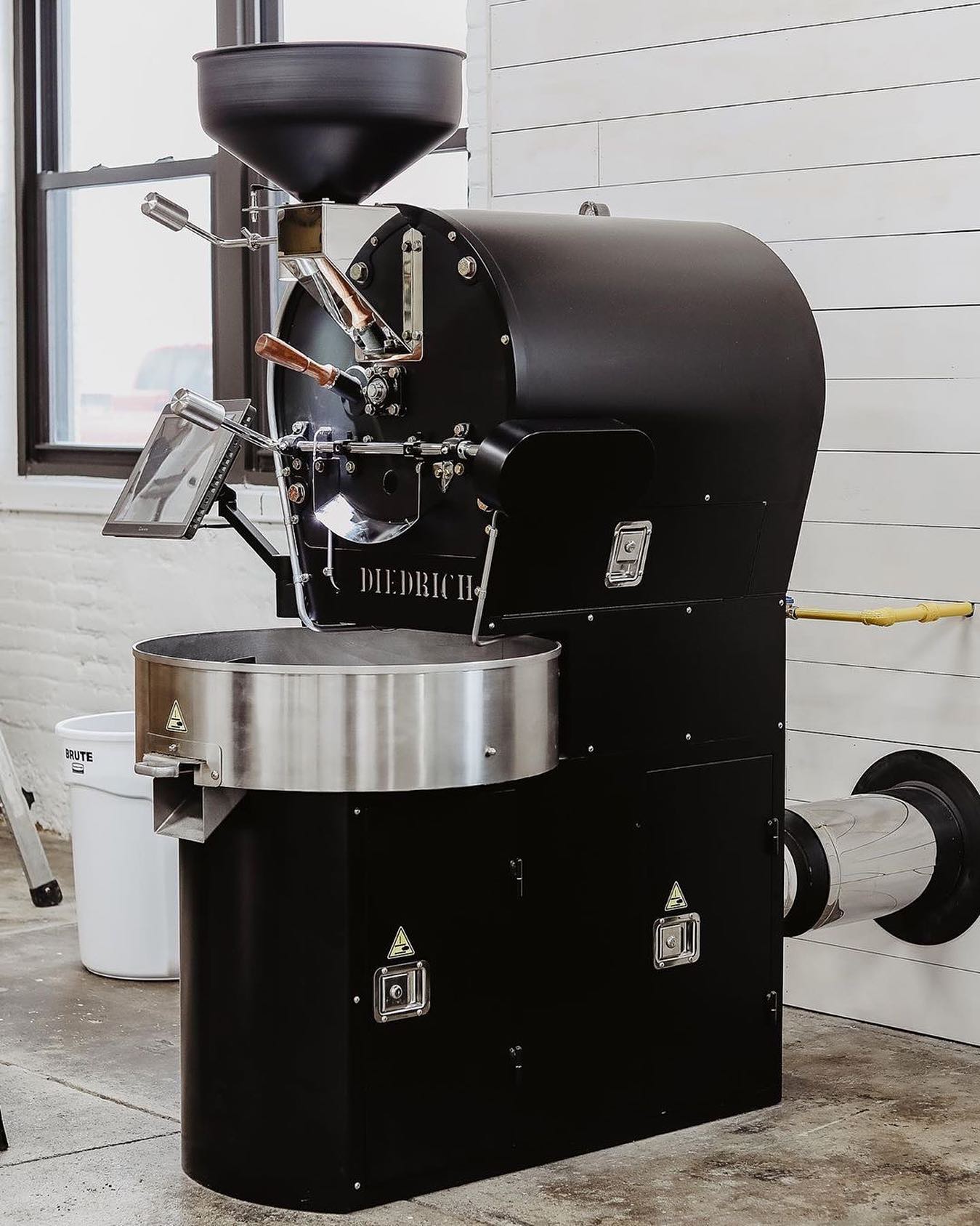

IR-5

IR-5 Auto & Manual Roaster Technical Data
General Information
Green coffee capacity, Min-Max 0.250 – 5kg
Dimensions, maximum L x W x H 1429 x 1222 x 1813mm (A)
1429 x 1222 x 1813mm (M)
Shipping weight (Approximate) 530 kg (A)
488 kg (M)
Shipping crate size, LxWxH 1549 x 1143 x 1956 mm (A)
1549 x 1041 x 1956 mm (M)
Full batch roast time to 227°C 13 – 16 Minutes
Hourly output, 15 minute roast 20 kg/h
Exhaust airflow, Max 486 sm3/h
Exhaust duct outside diameter 203 mm
Temperature high limit 246°C burner off, 252°C pilot off
Electrical Information
Volts AC (1-Phase) 100-120V or 200-240V
Frequencies 50Hz or 60Hz
Full Load Amps 13.3 Amps at 120V 60Hz (A)
7.5 Amps at 230V 50Hz (A)
11.1 Amps at 120V 60Hz (M)
6.1 Amps at 230V 50Hz (M)
Roaster Main Breaker size 15 Amps at 120V 60Hz
10 Amps at 230V 50Hz
Gas Information
Gas Types (others if pre-approved) Liquid Propane (LP) or Natural Gas (NG)
Maximum consumption 15 kW
Typical consumption per roast 2.9 kWh
Inlet Pressure LP 30-35 mbar
Inlet Pressure NG 25-30 mbar
Inlet gas supply connection ½ in male NPT on roaster
