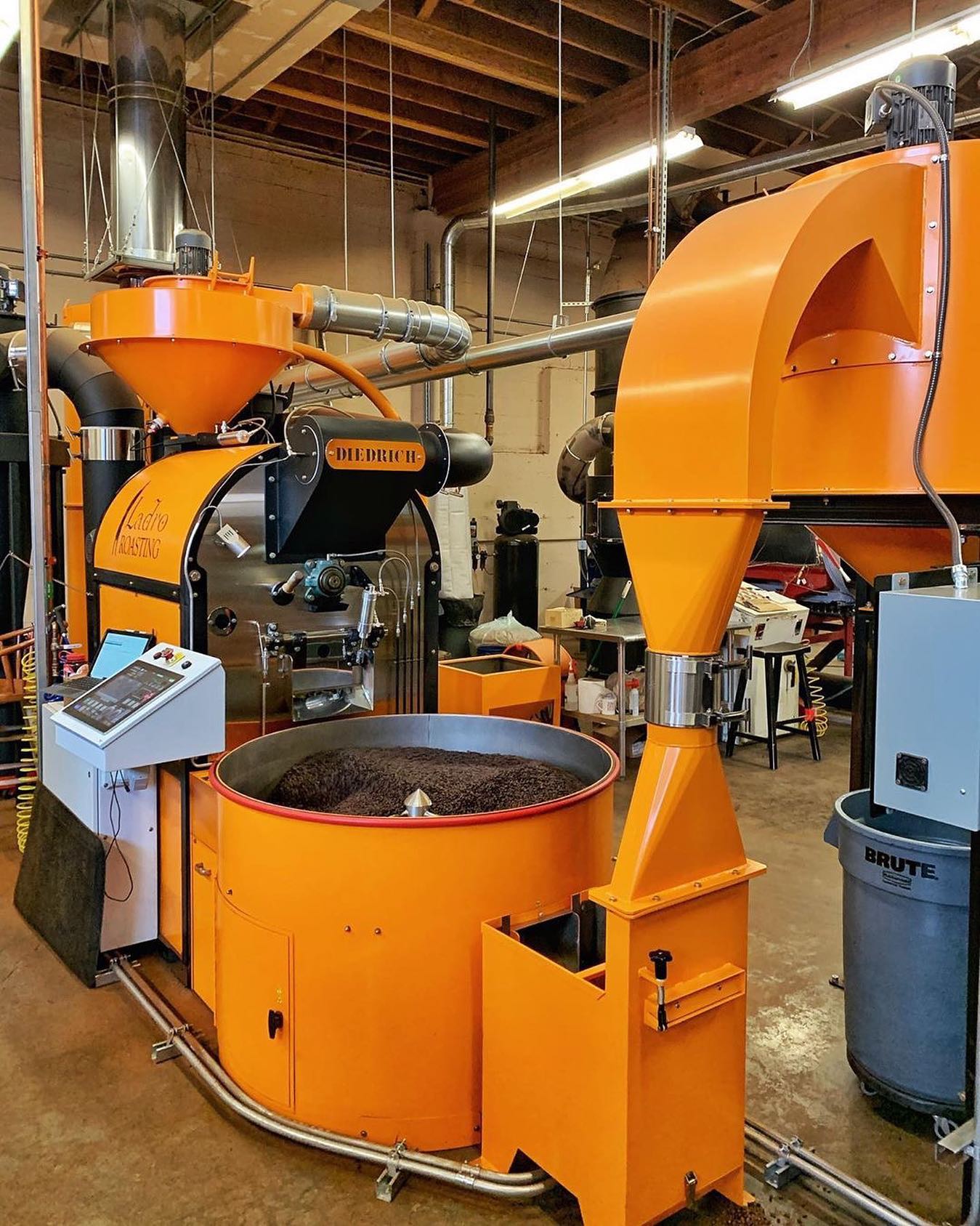

CR-280 Roaster Technical Data
| General Information | |
| Green coffee capacity, Min-Max | 35 – 280 kg |
| Dimensions, maximum L x W x H | 6045 x 3810 x 4089 mm |
| Shipping weight (Approximate) | Actual shipping weight may vary |
| Roaster and main electrical panel 3,402 kg | |
| Cooling Bin 1,471 kg | |
| Other Components Available upon request | |
| Shipping crate size, L x W x H | Actual crate size may vary |
| Roaster and main electrical panel 3810 x 2185 x 2540 mm | |
| Cooling Bin 2489 x 2337 x 2134 mm | |
| Other Components Available upon request | |
| Full batch roast time to 227°C | Approximately 15 minutes |
| Hourly output, 15 minute roast | 1,120 kg/hr |
| Roast Air, maximum | 3,398 sm3/h |
| Cooling Bin Air, maximum | 8,495 sm3/h |
| Loader Exhaust Air, maximum | 5,829 sm3/h |
| Destoner Exhaust Air, maximum | 6,933 sm3/h |
| Roast Air Cyclone outlet diameter | 356 mm |
| Cooling Bin Blower outlet diameter | 457 mm |
| Cooling Bin Cyclone outlet diameter | 610 mm |
| Loader Exhaust diameter | 203 mm |
| Destoner Exhaust diameter | 203 mm |
| Temperature high limit | 246°C burner off, 252°C pilot off |
| Air Pressure | 4.8 bar |
| Air Connection | ¼” female NPT on the roaster |
| Water Pressure | 2.75 – 4.8 bar |
| Water Connection | ⅜ inch female NPT on the roaster |
| Water flow to roaster at 2.8 bar | 37.85 liters per minute |
| Electrical Information | |
| Volts AC | 200-240V 1PH or 3 PH; or 380-480V 3PH |
| Frequencies | 50Hz or 60Hz |
| Full Load Amps; Roaster without loader | 84 Amps at 230V 3PH 50/60Hz |
| 46.5 Amps at 480V 3PH 50/60Hz | |
| Full Load Amps; Roaster with loader | 112 Amps at 230V 3PH 50/60Hz |
| 61.3 Amps at 480V 3PH 50/60Hz | |
| Main Breaker size | 150 Amps at 230V 3PH 50/60Hz |
| 90 Amps at 480V 3PH 50/60Hz | |
| Gas Information | |
| Gas Types (others if pre-approved) | Liquid Propane (LP) or Natural Gas (NG) |
| Maximum consumption | 469 kW |
| Typical consumption per roast | 105.5 kWh |
| Inlet Pressure LP | 68.9-137.9 mbar |
| Inlet Pressure NG | 68.9-137.9 mbar |
| Inlet gas supply connection | 1” female NPT on the roaster |
